How to Create and Install an Apache Self Signed Certificate

Apache Self Signed CertificateSSL is an essential part of creating a secure Apache site. SSL certificates allow you encrypt all the traffic sent to and from your Apache web site to prevent others from viewing all of the traffic. It uses public key cryptography to establish a secure connection. This means that anything encrypted with a public key (the SSL certificate) can only be decrypted with the private key (stored only on the server) and vice versa.

When to Use a Self Signed Certificate

You should never use a self signed certificate on an e-commerce site or any site that transfers valuable personal information like credit cards, social security numbers, etc.

An SSL certificate is necessary for more than just distributing the public key: if it is signed by a trusted third-party, it verifies the identity of the server so clients know they aren’t sending their information (encrypted or not) to the wrong person. So what is a self signed certificate? It is a certificate that is signed by itself rather than a trusted third party. Isn’t that bad? In most cases, yes. You will almost never want to use a self signed certificate on a public Apache server that requires anonymous visitors to connect to your site because they could easily become a victim of a man-in-the-middle attack. However, self signed certificates have their place:

  • Self signed certificates can be used on an Apache development server. There is no need to spend extra cash buying a trusted certificate when you are just developing or testing an application.
  • Self signed certificates can be used on an intranet. When clients only have to go through a local intranet to get to the server, there is virtually no chance of a man-in-the-middle attack.
  • Self signed certificates can be used on personal sites with few visitors. If you have a small personal site that transfers non-critical information, there is very little incentive for someone to attack the connection.

Just keep in mind that visitors will see a warning in their browsers (like the one below) when connecting to an Apache site that uses a self signed certificate until it is permanently stored in their certificate store. You should never use a self signed certificate on an e-commerce site or any site that transfers valuable personal information like credit cards, social security numbers, etc. Just lay down a few dollars on a trusted cheap SSL certificate or a free SSL certificate.

Apache Self signed Certificate Error in Firefox

Generate Your Apache Self Signed Certificate

Great! So now you know when to use an Apache self signed certificate and when not to. Now, let’s create one: First, we need to make sure OpenSSL is installed. If you are installing the self signed certificates on Windows, grab the Windows version of OpenSSL (If you get an error when you run the installer, you may need to download the Visual C++ 2008 Redistributables listed on that page first). If you are on another type of server, try running “openssl” on the command line to see if OpenSSL is already installed. If it is not, you will need to download a package or compile it from its source.

Once you have OpenSSL installed, just run this one command to create an Apache self signed certificate:

openssl req -x509 -nodes -days 365 -newkey rsa:2048 -keyout mysitename.key -out mysitename.crt

How to generate an Apache self signed certificate with OpenSSL

You will be prompted to enter your organizational information and a common name. The common name should be the fully qualified domain name for the site you are securing (www.mydomain.com). You can leave the email address, challenge password, and optional company name blank. When the command is finished running, it will create two files: a mysitename.key file and a mysitename.crt self signed certificate file valid for 365 days.

Install Your Self Signed Certificate

Now, you just need to configure your Apache virtual host to use the SSL certificate. If you only have one Apache virtual host to secure and you have an ssl.conf file being loaded, you can just edit that file. Otherwise, you will need to make a copy of the existing non-secure virtual host, paste it below, and change the port from port 80 to 443.

  1. Open your Apache configuration file in a text editor. Depending on your operating system and Apache version, it will be located in different places but you will usually find it at /etc/httpd/httpd.conf. On a Windows machine, you will usually find it at C:\Program Files\Apache\Apache2\conf\httpd.conf
  2. In most cases, you will find the <VirtualHost> blocks in a separate file in a directory like /etc/httpd/vhosts.d/ or /etc/httpd/sites/. Add the lines in bold below. <VirtualHost 192.168.0.1:443>
    DocumentRoot /var/www/website
    ServerName www.domain.com
    SSLEngine on
    SSLCertificateFile /etc/ssl/crt/primary.crt
    SSLCertificateKeyFile /etc/ssl/crt/private.key
    SSLCertificateChainFile /etc/ssl/crt/intermediate
    .crt
    </VirtualHost>
  3. Change the names of the files and paths to match your certificate files. Save the changes and exit the text editor.
  4. Restart your Apache web server using one of the following commands: /usr/local/apache/bin/apachectl startssl
    /usr/local/apache/bin/apachectl restart

Learn more about installing a certificate in Apache.

Check the Apache Self Signed Certificate Installation

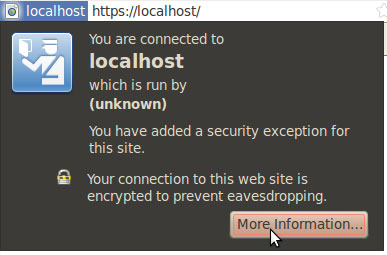

View an Apache self signed certificate in FirefoxIf the Apache site is public, you can use our SSL Checker to verify that it is installed correctly (ignoring the warning that it is not trusted because it is self signed). Otherwise, just go to the website in your web browser using https in the address bar (https://www.mysitename.com) and verify that the certificate is being given out by the server by clicking the certificate icon (after clicking through the warnings).

For more information on generating an Apache self signed certificate, see the following links:

 Digg  del.icio.us  Reddit

Posted on October 16, 2010
droope
Posts: 9
Comment
Great post
Reply #10 on : Sun July 06, 2014, 23:01:47
Great post, thanks
ob prasad
Posts: 9
Comment
Re: How to know the error in SSL when it is struck in https
Reply #9 on : Fri November 08, 2013, 11:31:33
sir,

I installed below edition in my server
Apache/2.4.4 (Win32) OpenSSL/0.9.8y PHP/5.4.19
and using the SSL certified one. It is installed properly. But frequently it is getting struck some where. For this I am temporarily restarting the my Apache server. When it is struck at that time apache is working through http. On https:// only I am getting the problem. I didn't found the any error also when it is struck.

Please suggest me.
KKING
Posts: 9
Comment
Re: How to Create and Install an Apache Self Signed Certificate
Reply #8 on : Tue September 24, 2013, 22:52:38
You may try this
Run command at > C:\Program Files (x86)\APACHE~1\Apache2.2\bin>openssl x509 -req -days 365 -in certificatename.csr -signkey certificatename.key -out certificatename.crt

copy certificatename.crt from > C:\Program Files (x86)\Apache Software Foundation\Apache2.2\bin to > C:\Program Files (x86)\Apache Software Foundation\Apache2.2\conf

then restart TOMCAT & APACHE services
Jordan
Posts: 9
Comment
Self-Signed, then why intermediate?
Reply #7 on : Mon September 23, 2013, 17:38:43
Hello - if I'm creating a self-signed certificate, for the sake of development or plain autonomy, why would I involve an intermediary certificate? I see you discuss it in the first paragraph, but you never really address where to acquire one. I either do not understand what a self-signed certificate is, or there is something missing here. I'm looking to create my own, not seek any third-party: is this possible? What do I do if I have no intermediate certificate, or where do I create my own?

thanks,
Jordan
sandeep
Posts: 9
Comment
Does ssl certificate provides email encryption?
Reply #6 on : Tue June 11, 2013, 18:54:04
Hi,

If I create the ssl self signed certificate then can i use the same certificate for postfix and dovecot? Will it work for IMAPS and POP3S?
Will it encrypt mails sent through webmail? and can i configure for https://www.example.com/mail
Mark
Posts: 9
Comment
reply
Reply #5 on : Mon March 11, 2013, 05:37:28
please read the manual before posting (here is the hint):
penssl req -new -x509 -extensions v3_ca -keyout \
private/cakey.pem -out cacert.pem -days 365 -config ./openssl.cnf
Sudeer
Posts: 9
Comment
SSL error
Reply #4 on : Tue February 26, 2013, 09:19:01
Hello,

I am trying to setup the SSL certificate in my development environment which is Windows 2003 server and Apache 2.2 with the steps given above.

I downloaded Win32OpenSSL-1_0_1e.exe and installed it. When running the openssl command i am getting the below error. please help to fix it.

C:\OpenSSL-Win32\bin>openssl req -x509 -nodes -days 365 -newkey rsa:2048 -keyout
sv10.key -out sv10.crt
WARNING: can't open config file: /usr/local/ssl/openssl.cnf
Unable to load config info from /usr/local/ssl/openssl.cnf


Thanks,
Sudeer
sam
Posts: 9
Comment
Re: How to Create and Install an Apache Self Signed Certificate
Reply #3 on : Thu January 31, 2013, 04:38:48
you should copy them under /etc/httpd/conf/
Robert
Posts: 1
Comment
Re: question
Reply #2 on : Wed November 28, 2012, 08:46:54
Hi jason,

The files will be created in the same directory where you run the command.
jason
Posts: 9
Comment
question
Reply #1 on : Tue November 27, 2012, 13:26:36
After using this command

"openssl req -x509 -nodes -days 365 -newkey rsa:2048 -keyout mysitename.key -out mysitename.crt"

2 files should be created a mysitename.key file and a mysitename.crt. but where are they store ? can some one please tell i can not seem to find then.
